1.Technical Parameters
| Strength Specification | Yield Strength, MPa | Tensile Strength, MPa | Elongation, % | Yield Load, kN | Breaking Load, kN/m | Theoretical Weight, kg/m | Material |
| φ16 | ≥335 | ≥490 | ≥16 | ≥100 | ≥100 | 1.58 | HRB335 |
| φ18 | ≥335 | ≥490 | ≥16 | ≥126 | ≥126 | 2 | HRB335 |
| φ20 | ≥335 | ≥490 | ≥16 | ≥156 | ≥156 | 2.47 | HRB335 |
| φ22 | ≥335 | ≥490 | ≥16 | ≥189 | ≥189 | 2.98 | HRB335 |
2. Product Structure

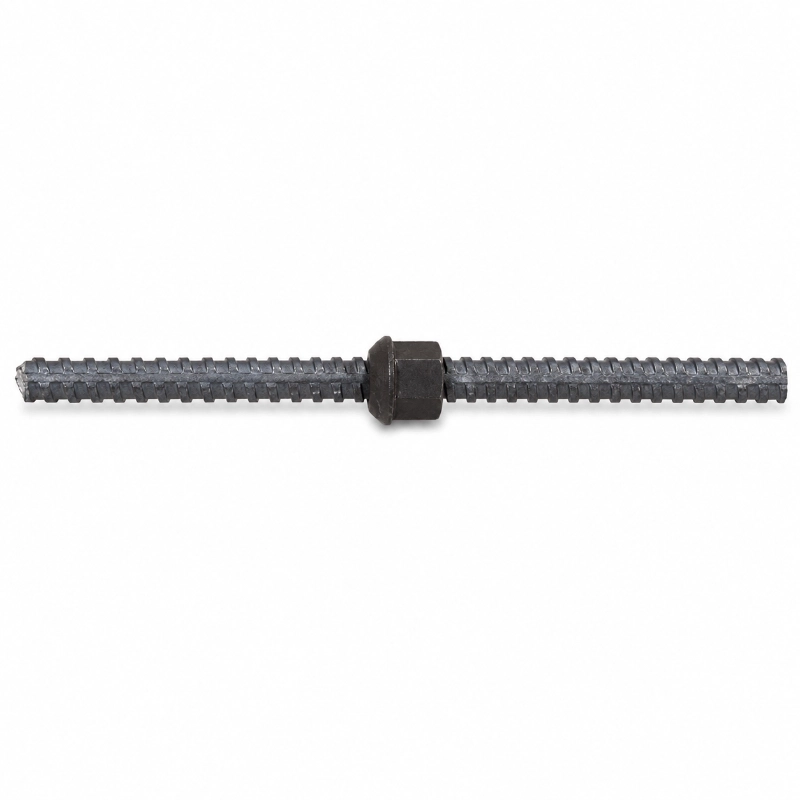

Right-hand thread anchor bolt consists of anchor rod body, anchor sleeve, anchor head and anchoring accessories. Its structure is simple and convenient. It can be quickly installed on site and fixed stably.
3. Applications
The right-hand threaded anchor bolt is mostly used in geotechnical engineering support. It is used in rocks and soils to prevent geological disasters such as collapse.
Main applications:
Tunnel engineering
Underground mining support
Slope stabilization

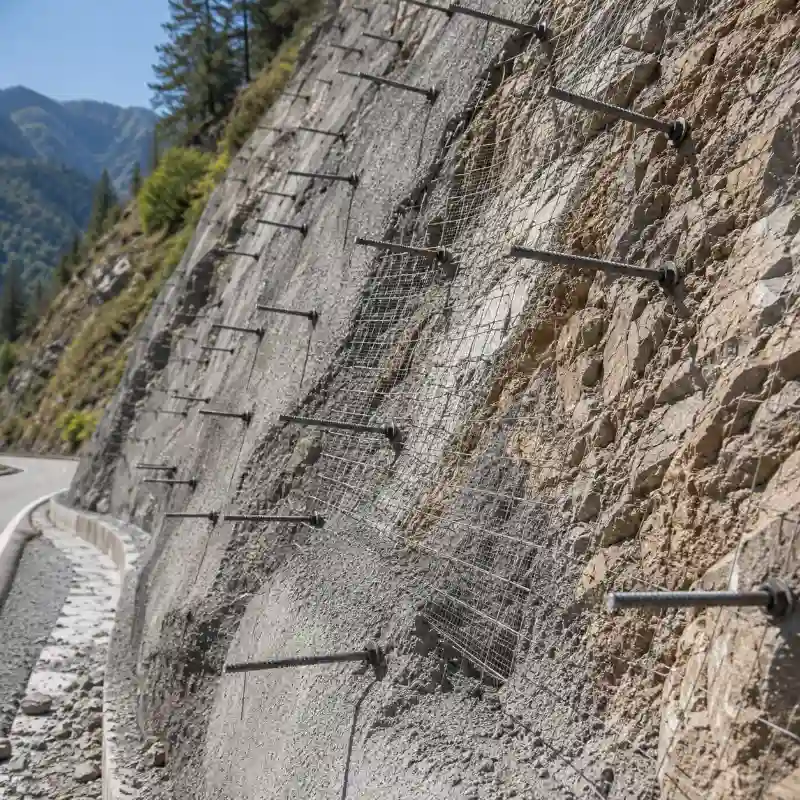

Mountain engineering

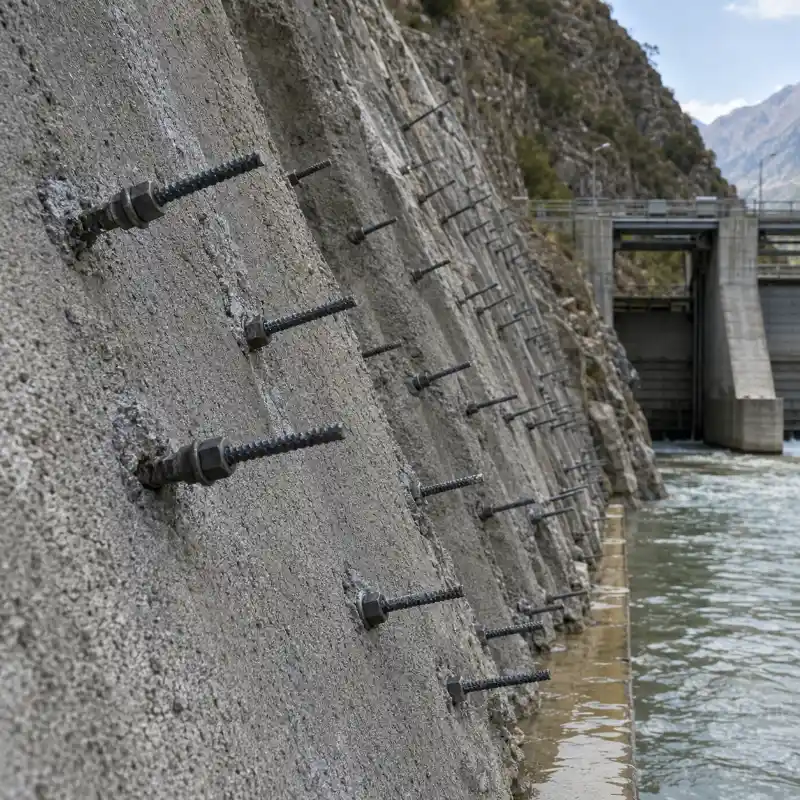

Hydraulic engineering
Rock reinforcement
Soil layer support
4. Advantages
4.1 Strong tensile strength: Right-Hand Threaded Anchor Bolt can provide strong tensile strength and ensure that geotechnical supports can be anchored reliably.
4.2 Corrosion resistance: Made of high-quality steel materials, with strong corrosion resistance and durability.
4.3 Durability: Good stability of material properties ensures that products can be used for a long time in geotechnical support.
4.4 Easy to install:Simple right-hand thread design. Installation is quicker and more efficient.
5. Limitations
The right-hand thread anchor bolt can only be used in tension. It cannot be used in compression. The specific application engineering should be selected according to the actual situation.
6. Construction Suggestions
6.1 Design: Select the specification of anchor bolt according to the actual needs of engineering and geological conditions.
6.2 Production: The materials used and the production process should be based on design requirements to ensure the quality of anchor bolts.
6.3 Construction: Construction should be based on the construction drawing and technical procedures for installation. Try to avoid installation errors and loose connections.
6.4 Maintenance: During use, you can inspect the anchor bolt in time to ensure long-term stability and safety.
7. FAQ
Q: What is a right hand threaded anchor bolt used for?
A: The right-hand threaded anchor bolt is used for rock reinforcement, tunnel support, mining support, slope reinforcement and other geological support uses.
Q:What material is the product made of?
A: The material of the product shown in the specification is made of HRB335 steel.
Q:What are the specifications for this product?
A:The specifications commonly used are φ16、φ18、φ20、φ22.
Q: Is this anchor bolt able to be compressed?
A: The anchor bolt is used under tension support condition. It is not meant for compression.
Q: What information do you need for a quotation?
A: Please provide us the information of diameter and length. Also quantity, usage, destination port and any surface treatment requirements or packaging instructions.
