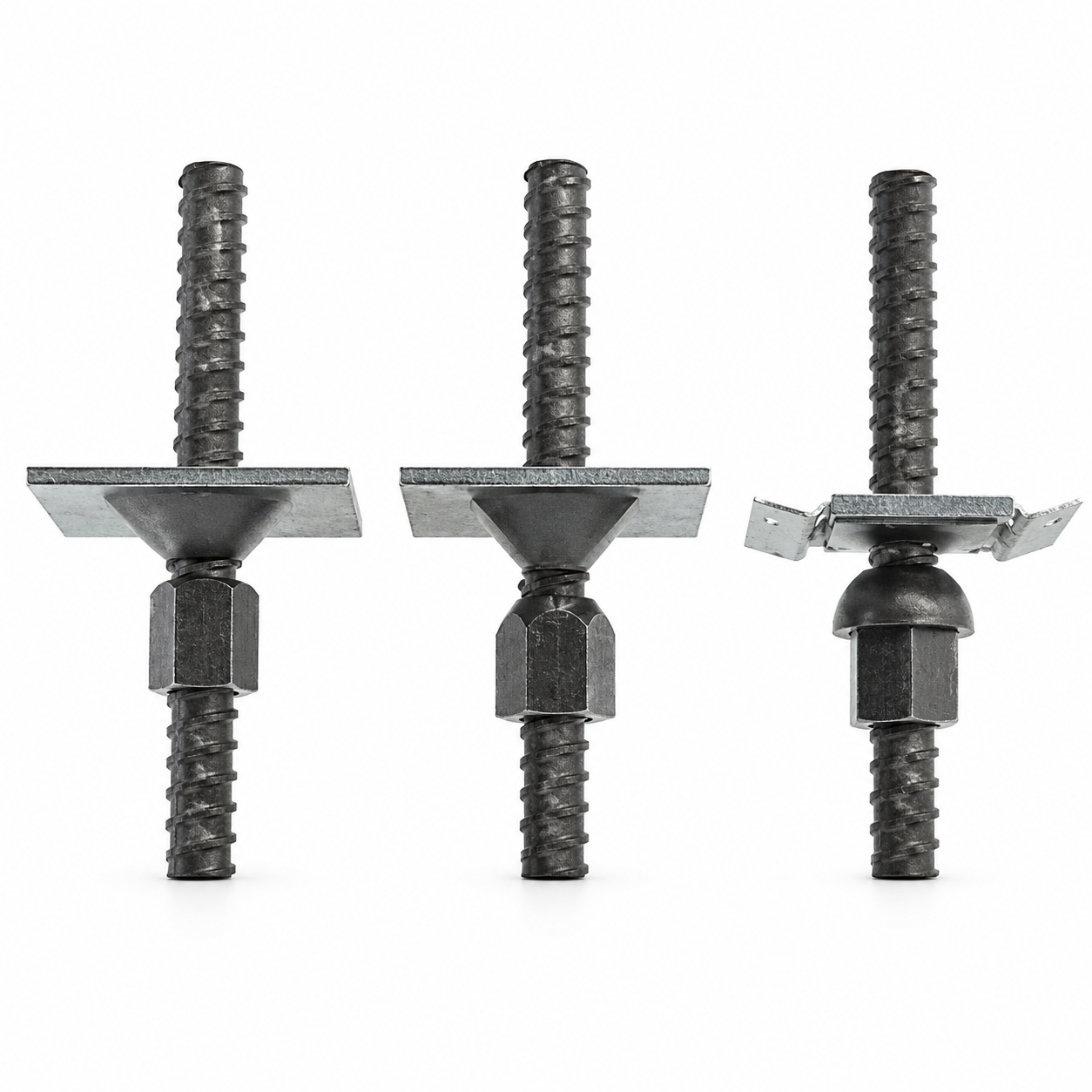

PSB1080 Anti Floating Precision Rolled Threaded Steel Bar Anchor

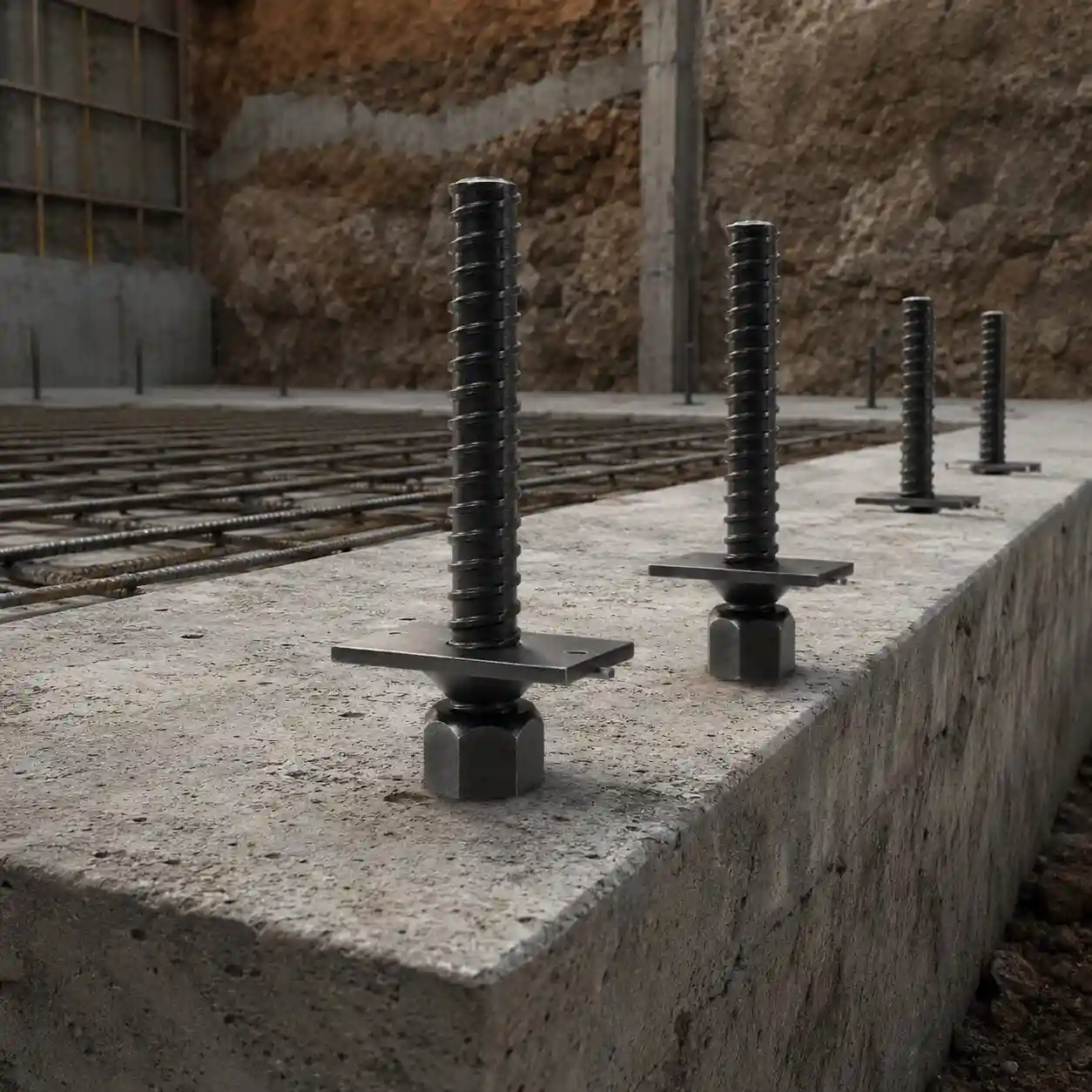

PSB1080 Anchor for Foundation Anti Floating Reinforcement

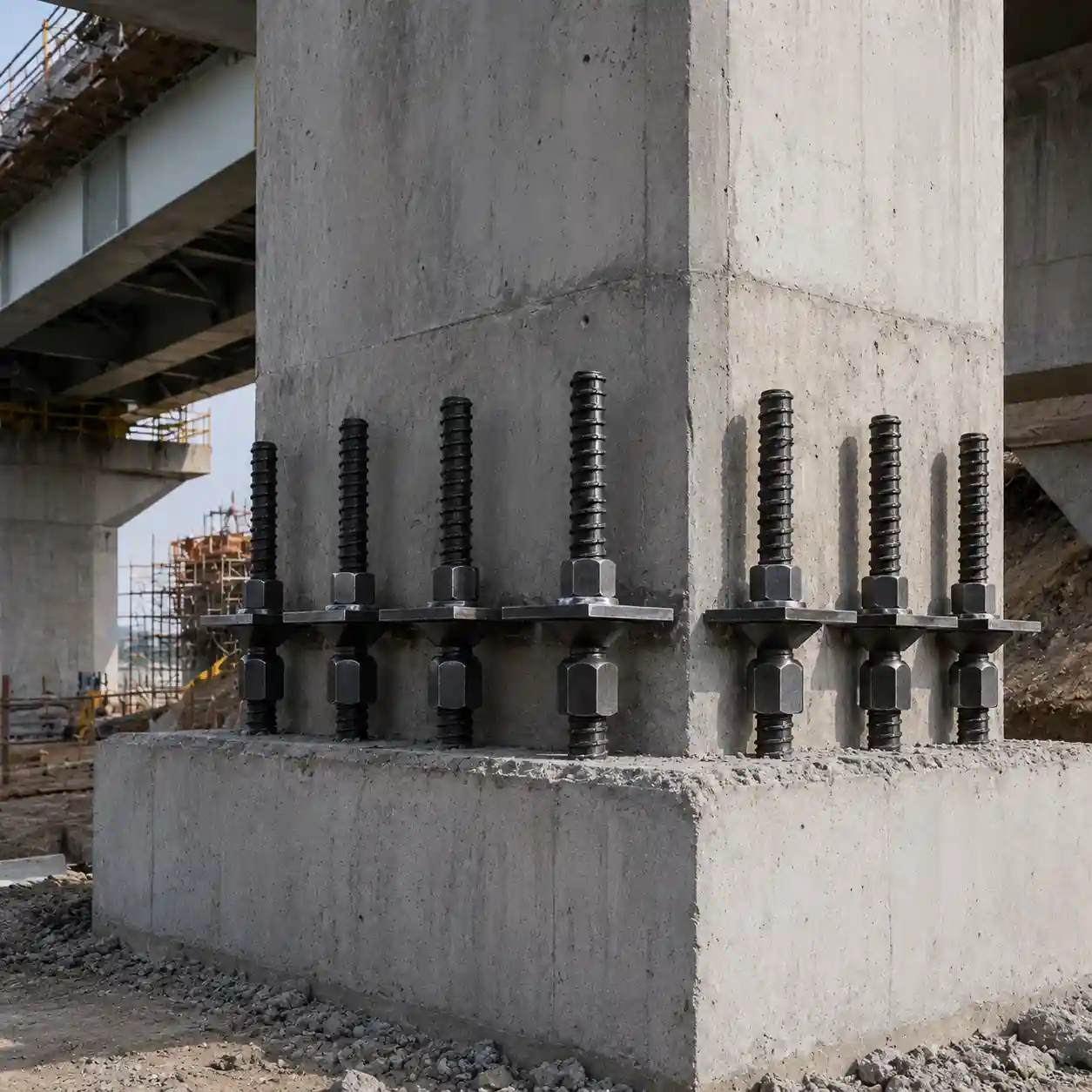

PSB1080 Threaded Steel Bar Anchor for Bridge Reinforcement

PSB1080 Anti-Floating Precision Rolled Threaded Steel Bar Anchor

PSB10 80 anti-floating precision rolled threaded steel bar anchor is mainly used for foundation anti-floating reinforcement anchoring, anti-floating projects, tunnel support, bridge anchoring and reinforcement, hydropower and water conservancy projects, mining engineering and anti-floating. Precision rolled threaded steel bar is made by precision rolling and threading. PSB10 80 steel bar has good mechanical properties, stable surface quality and reliable anchoring performance. Minimum yield strength 1080MPa and tensile strength 1230MPa meet the high-quality requirements of many projects. Good pull- out resistance, strong bearing capacity and long service life.

Minimum yield strength 1080MPa
Minimum tensile strength 1230MPa
Good anti-floating bearing capacity
Precise rolled thread allowing for quicker installation and tensioning
Available with anchor plate, nut, coupler and other accessories
Surface treatment options
Available in various diameters and lengths to meet project requirements.

Chat Now Message Email

Product Description

1.Technical Specifications

Item	Specification
Product Type	Anti-Floating Precision Rolled Threaded Steel Bar Anchor
Grade	PSB1080
Minimum Yield Strength	1080MPa
Tensile Strength	1230MPa
Common Diameters	15mm, 25mm, 32mm, 36mm, 40mm, 50mm
Surface Treatment	Black, galvanized, hot-dip galvanized available
Processing	Precision rolled thread
Application	Foundation anti-floating, bridge, tunnel, hydropower, mining and slope protection

2. Load Capacity Reference

Diameter	Yield Load	Tensile Load
15mm	191 kN	218 kN
25mm	339 kN	386 kN
32mm	530 kN	604 kN
36mm	868 kN	989 kN
40mm	1358 kN	1546 kN
50mm	2120 kN	2414 kN

3. Nominal Section Area & Theoretical Weight

Nominal Diameter	Nominal Section Area	Effective Section Coefficient	Theoretical Section Area	Theoretical Weight
18mm	254.5 mm²	0.95	267.9 mm²	2.11 kg/m
25mm	490.0 mm²	0.94	522.2 mm²	4.10 kg/m
32mm	804.2 mm²	0.95	846.5 mm²	6.65 kg/m
40mm	1256.6 mm²	0.95	1322.7 mm²	10.34 kg/m
50mm	1963.3 mm²	0.95	2660.8 mm²	16.28 kg/m

4. Applications

Foundation anti-floating
Suitable for basement anchoring and underground structure anchorage
Suitable for foundation pit supporting engineering
Bridge anchoring and reinforcement
Tunnel support and rock anchoring
Hydropower, water conservancy projects
Mining engineering and anti-floating
slope protection
Retaining wall

5. Quality Standards

Produced and checked according to GB/T 20065-2006, JG/T 163-2013, JGJ/T 152-2014 and YB/T 5148-2016.

5.1 GB/T 20065-2006 Steel bars for prestressed concrete
5.2 JG/T 163-2013 Hot rolled ribbed steel bars for reinforced concrete
5.3 JGJ/T 152-2014 Technical specification for mechanical splicing of steel reinforcing bars
5.4 YB/T 5 148-2016 Threaded steel bars for prestressed concrete

6. FAQ

6.1 What is PSB10 80 threaded steel bar used for?
PSB10 80 threaded steel bar can be used for foundation anti-floating anchoring, tunnel engineering, bridge reinforcement, hydropower project, mining anchoring and anti-floating, slope protection.

6.2 What size/thread is PSB10 80 threaded steel bar?
The minimum yield strength is 1080MPa and minimum tensile strength is 1230MPa.

6.3 What size PSB10 80 bars are available?
The common diameters of PSB10 80 anchor bars are 15mm, 25mm, 32mm, 36mm, 40mm, 50mm. Special customized dimensions are available if required.

6.4 Can PSB10 80 bars be galvanized?
Yes. Surface treatment options including galvanized and hot-dip galvanized. Both options are suitable for humid and corrosive environments such as acid, alkali and other severe environments.

6.5 What anchor bars can I get accessories for?
Anchor plates, nuts, couplers and other accessories are available.
