1.Technical Parameters
| Model | H25S | H28S | H32S | H38S |
| Outer Diameter, mm | 25 | 28 | 32 | 38 |
| Inner Diameter, mm | 12 | 14 | 15 | 20 |
| Cross-sectional Area, mm2 | 295 | 369 | 521 | 692 |
| Ultimate Load, kN | 220 | 280 | 365 | 550 |
| Steel Nut Load, L=70 mm, kN | 140 | 150 | 230 | 280 |
| FRP Nut Load, L=70 mm, kN | 70 | 70 | 80 | 80 |
| Torsional Strength, Nm | 180 | 250 | 400 | 450 |
| Ultimate Strain | 2.50% | – | – | – |
| Elastic Modulus, GPa | 45 | – | – | – |
| Weight, kg/m | 0.63 | 0.86 | 0.99 | 1.33 |
| Thread Specification | R25 | R28 | R32 | R38 |
| Thread Direction | Left-hand or right-hand | Customizable | Customizable | Customizable |
2. Item Codes
| Item Code | Description | Unit |
| 100100980 | FRP Hollow Rod, H25S | m |
| 100100981 | FRP Hollow Rod, H28S | m |
| 100100982 | FRP Hollow Rod, H32S | m |
| 100100983 | FRP Hollow Rod, H38S | m |
3. Applications
FRP hollow rock bolts are commonly used for various geotechnical support projects. Primarily they are used for reinforcement, stabilization and anchoring of rock and soil layers.
Applications include:
Tunneling projects

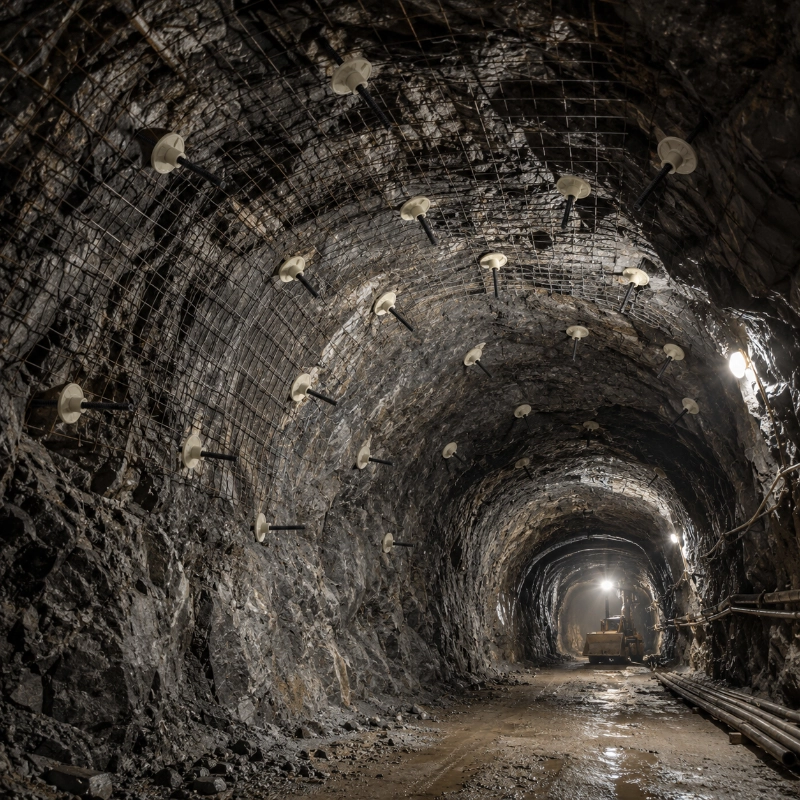

Underground mining
Rock reinforcement
Slope stabilization

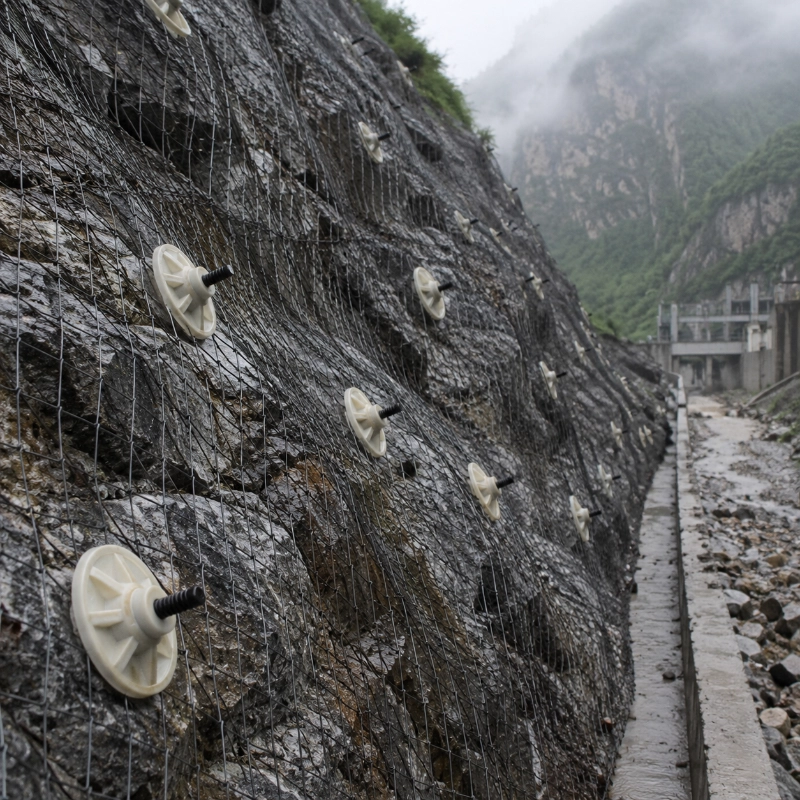

Mountain projects
Hydraulic engineering
Corrosive or humid environments underground.
4. Structure

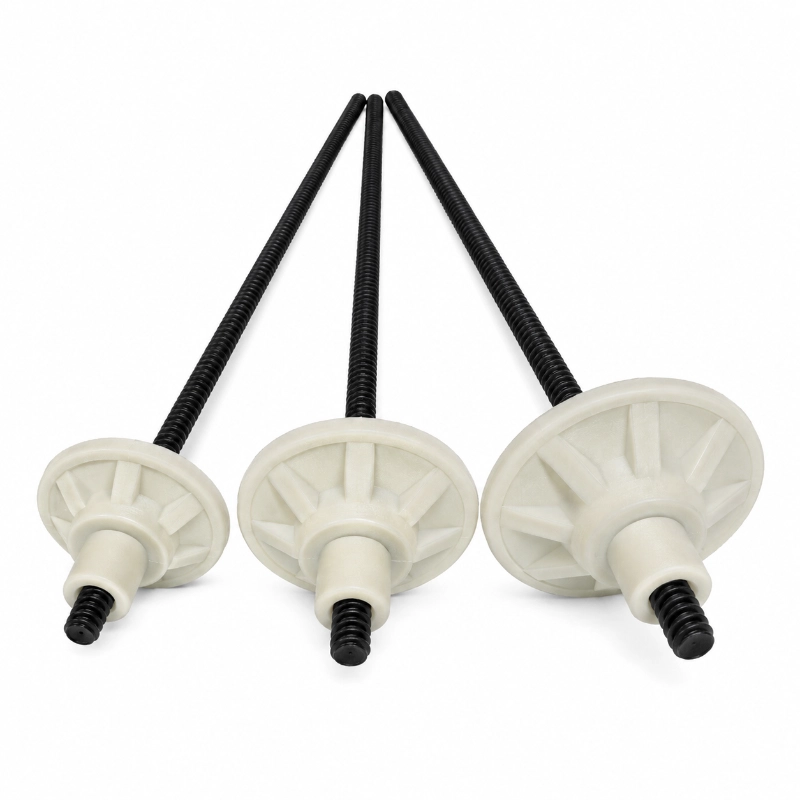

The FRP hollow rock bolt consists of a hollow rod body, anchor head and anchoring accessories. It has a hollow structure which allows for simple installation and is made from fiberglass reinforced resin materials.
5. Advantages
5.1 High Strength: FRP hollow anchor rods offer dependable tensile strength and can help support your geotechnical structures.
5.2 Corrosion Resistance: The fiberglass and resin composite material allows the bolt to withstand corrosive or chemically aggressive environments.
5.3 Lightweight: FRP Hollow Rock bolts are lighter than their steel counterparts making transportation, handling and installation much easier.
5.4 Long Service Life: Enjoy long-term stable performance when using our product for underground support.
6. Construction Suggestions
6.1 Please choose the appropriate model based on the load rating required for your project, as well as geological conditions and design.
6.2 Make sure during installation to follow construction drawings and installation process requirements to ensure that there is no incorrect anchoring or loose fittings.
6.3 During use, regular inspection and maintenance is recommended to ensure long-term stability, safety and durability.
7. FAQ
7.1 What is FRP hollow rock bolt used for?
FRP hollow rock bolts are used for tunnel support, mining support, slope stabilization, rock layer reinforcement and other geotechnical projects.
7.2 What are the available models?
Available models are H25S, H28S, H32S and H38S.
7.3 Can these be used in corrosive environments?
FRP offers excellent corrosion resistance. FRP hollow rock bolts can be used in humid environments or other corrosive and chemically aggressive environments underground.
7.4 Can I get a custom left hand or right hand thread?
Yes. We offer both left-hand and right-hand thread options. Please specify which direction is required for your project.
7.5 What information is required for a quote?
Model, length, quantity, thread direction (left/ right), application, any required accessories and the destination port.
